Product Details:
|
| Image: | Erect | Color: | Leica Green |
|---|---|---|---|
| Telescope Magnification: | 30X | Clear Objective Aperture: | φ40mm |
| Field Of View: | 1°20′ | Shortest Focusing Distance: | 2m |
| Multiplication Factor: | 100 | Additive Constant: | 0 |
| Graduation Interval: | 1° | Smallest Interval Reading: | 1′ |
| Estimation: | 0.1″ | Plate Level: | 30” / 2mm |
| Index Level: | 30” / 2mm | Circular Level: | 8′ / 2mm |
| Optical Plummet Magnification: | 0.85~1.7x | Optical Plummet Field Of View: | 4° |
| Glass Circles: | 360/400G | Net Weight: | 3.5kg |
| Highlight: | total station theodolite,theodolite surveying instrument |
||

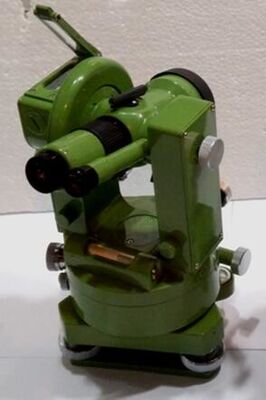

Main Features and Use:
The telecope is inner focusing with sharp image. Therule is easy to read estimat with high reading precision. The vertical axis is semi-mobile, turing smoothly, high directional preision.
The horizontal standard deviation of one measurement is not larger than ±6″,the vertical standard deviation of one measurement is no langer than ±10°.
The instrument is mainly used for low level control measurement,engineering measurement, wire measurement and construction measurement etc.
Specifications
|
1. Telescope: |
J6E( Erect Image ) |
| Magnification: | 30X |
| Clear Objective Aperture: | φ40mm |
| Field of view: | 1°20′ |
| Shortest Focusing Distance: | 2m |
| Multiplication Factor: | 100 |
| Additive Constant: | 0 |
| 2. Reading microscope (Scale): | |
| Granduation Interval: | 1° |
| Smallest Interval Reading: | 1′ |
| Estimation: | 0.1′ |
| 3.Bubble Sensitivity: | |
| Plate level: | 30″/2mm |
|
Index level: |
30"/2mm |
| Circular level: | 8′/2mm |
| 4.Optical Plummet: | |
| Magnification: | 0.85~1.7x |
| Field of View: | 4° |
| Focusing Distance(from the head plane): | 0.8~1.5m |
| Net weight: |
3.5kg |
