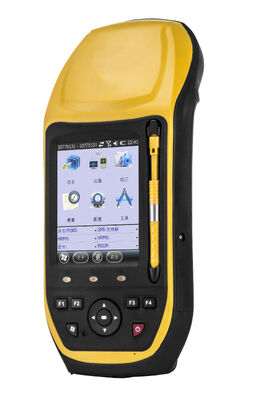

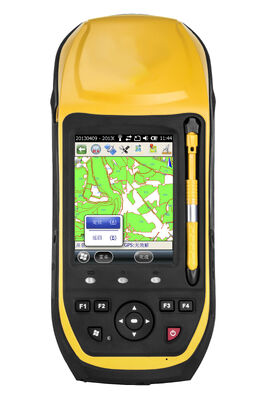

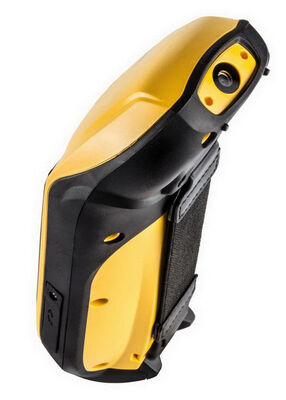

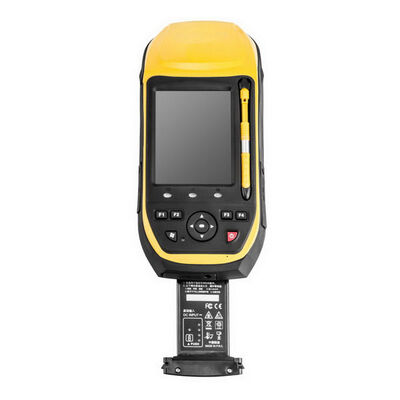

MG858S 372 channels handheld gnss with GPS/GLONASS/Beidou L1/B1 support Wifi/Bluetooth/WCDMA
Basic Properties
Place of Origin:
China
Brand Name:
No brand or OEM
Certification:
CE certificate
Model Number:
MG8 Serial
Trading Properties
Minimum Order Quantity:
1pc
Price:
USD
Payment Terms:
L/C, T/T
Supply Ability:
10000pcs
Product Summary
MG858S 372 channels handheld gnss with GPS/GLONASS/Beidou L1/B1 support Wifi/Bluetooth/WCDMA Spectifications Operating System Windows mobile6.5 professional CPU: MG8PLUS 833MHz GNSS Channels: 372 GPS:L1,BEIDOU: B1,GLONASS: L1 reserve upgrade for GALILEO,QZSS system Accuracy Single-point: 1.2m SBAS: ...
Product Details
Highlight:
high precision GNSS
,gnss gps receiver
Model Name:
MG858S
Operating System:
Windows
Accuarcy:
Single-point: 1.2m
RTK:
Horizontal: 1cm+1ppm Vercial: 2cm+1ppm
Memory:
RAM 258MB+ ROM 4G
Come With:
Wifi/ Bluetooth / WCDMA
CPU:
MG8PLUS 833HZ
Positioning Time:
RTK Initializationa 120s
Working Hours:
14hours
Working Temperature:
-20℃- +60℃
Storage Temperature:
-30℃- +70℃
Color:
Yellow
Waterproof:
IP66
Product Description
MG858S 372 channels handheld gnss with GPS/GLONASS/Beidou L1/B1 support Wifi/Bluetooth/WCDMA
Spectifications
| Operating System | Windows mobile6.5 professional | ||||||
| CPU: MG8PLUS 833MHz | |||||||
| GNSS | Channels: 372 | ||||||
| GPS:L1,BEIDOU: B1,GLONASS: L1 | |||||||
| reserve upgrade for GALILEO,QZSS system | |||||||
| Accuracy | Single-point: 1.2m | ||||||
| SBAS: 0.3m | |||||||
| DGPS: 0.2m | |||||||
| RTK: horizontal: 1cm+1ppm;Vertical: 2cm+1ppm | |||||||
| Positioning Time | Cold start:＜60s,Low-temperature start:＜30s,Warm start:＜10s | ||||||
| RTK initialization: 120s | |||||||
| Memory | RAM: 258MB(Optional 512MB) | ||||||
| ROM:4G(expand to 32G) | |||||||
| Memory expansion:support SD card storage expansion | |||||||
| Communication | Wireless communication: support WIFI,Bluetooth | ||||||
| Network communication: standard 3.75G | |||||||
| WCDMA network communication,sopport for voice calls | |||||||
| USB: USB2.0 interface,support for USB OTG | |||||||
| Screen | 3.7inch Blanview TFT transflective screen,resolution 640*480 pixels | ||||||
| Power | 37.7W smart Li-ion battery,removable,with | ||||||
| electricity indicator and temperature control chip | |||||||
| Working time: typical 14 hours | |||||||
| Environment | Working temperature: -20℃-+60℃ | ||||||
| Storage temperature:-30℃-+70℃ | |||||||
| Water/dustproof: IP66(Optional IP67) | |||||||
| Shock:1.5meters drop to the hard ground without damage | |||||||
| Humidity:95% non-condensing | |||||||
| Extended Function | Camere: 5 mega pixels, support auto focus | ||||||
| Support a microphone recording | |||||||
