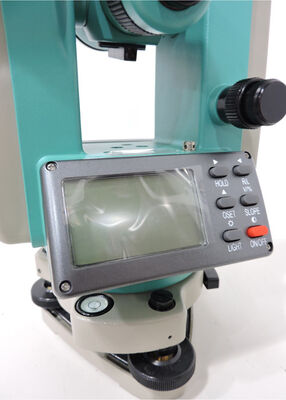

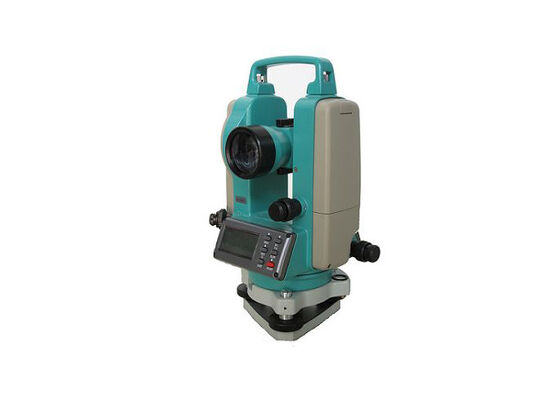

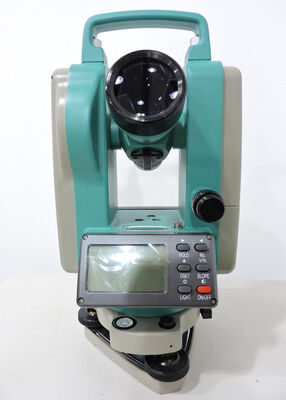

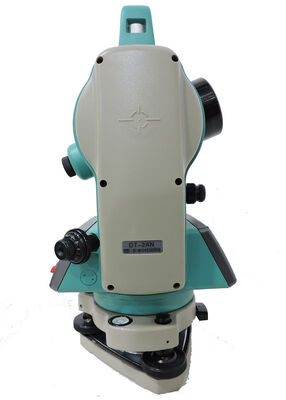

DT 2" high accuracy Topcon Style Digital Electronic Theodolite for constrction, Surveying Instrument,GEOALLEN brand,
Basic Properties
Place of Origin:
China
Brand Name:
Geoallen
Model Number:
DT-2
Trading Properties
Minimum Order Quantity:
1 pc
Price:
USD
Payment Terms:
L/C, T/T,
Supply Ability:
10000pcs
Product Summary
DT-2 2" high accuracy Topcon Style Digital / Electronic Theodolite for Construction Surveying Instrument,GEOALLEN Brand Specifications Telescope: DT-2A DT-2 DT-5 DT-10 DT-20 Length: 156mm Objective lens: 45mm Magnification: 30x Image: Erect Field of view: 1°30' Resolving 3" Minimum 1.2m Stadia 0 ...
Product Details
Highlight:
electronic digital theodolite
,theodolite surveying instrument
Color:
Blue/ Grey Or Yellow/Grey
Display:
Both Faces
Data Output:
RS232C Data Output
Water And Dust Proof:
IP54
Operation:
Simple
Compensator:
Could Provide
Product Description
DT-2 2" high accuracy Topcon Style Digital / Electronic Theodolite for Construction Surveying Instrument,GEOALLEN Brand
Specifications
| Telescope: | DT-2A | DT-2 | DT-5 | DT-10 | DT-20 | ||||
| Length: | 156mm | ||||||||
| Objective lens: | 45mm | ||||||||
| Magnification: | 30x | ||||||||
| Image: | Erect | ||||||||
| Field of view: | 1°30' | ||||||||
| Resolving | 3" | ||||||||
| Minimum | 1.2m | ||||||||
| Stadia | 0 | ||||||||
| Stadia ratio: | 100 | ||||||||
| Electronic | |||||||||
| Method: | Incremental reading | ||||||||
| Detecting: | Horizontal:2 Vertical:1 | ||||||||
| Minimum | 1"/5" | 10"/20" | |||||||
| Accuracy*1 | 2" | 2" | 5" | 10" | 20" | ||||
| Diameter of circle: | 79mm | ||||||||
| Display: | |||||||||
| Display panel | 2 sides | ||||||||
| Illumination: | yes | ||||||||
| Compensator | |||||||||
| Tilt sensor | Automatic | / | |||||||
| Compensator | |||||||||
| Range: | ±3' | / | |||||||
| Precision | 3" | / | |||||||
| Optical Plummet Telescope: | |||||||||
| Magnification: | 3x | ||||||||
| Filed of view: | 50 | ||||||||
| Focusing range: | 0.5m-∞ | ||||||||
| Level | |||||||||
| Plate level: | 30"/2mm | ||||||||
| Circular level: | 8'/2mm | ||||||||
| Power | |||||||||
| Battery: | Ni-Mh battery | ||||||||
| Operating | 10hours | ||||||||
| Other: | |||||||||
| Data Output: | RS-232C | ||||||||
| Dimension: | 160x150x330 | ||||||||
| Weight: | 5.2kg | ||||||||
| Operating | -20℃~+45℃. | ||||||||
