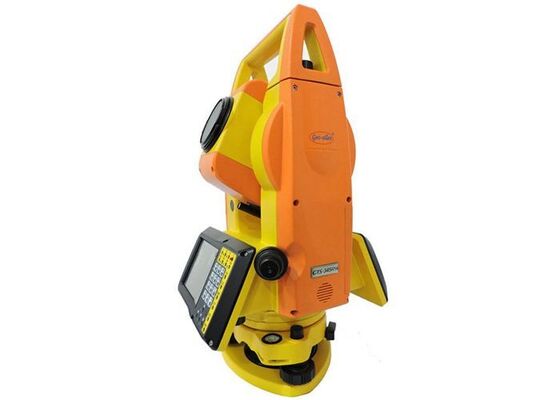

GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction
Basic Properties
Place of Origin:
CHINA
Brand Name:
GEOALLEN
Model Number:
GTS340 SERIAL
Trading Properties
Minimum Order Quantity:
1pc
Price:
USD
Payment Terms:
L/C, T/T
Supply Ability:
10000pcs
Product Summary
GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction Specifications TECHNICAL DATA GTS-342R10A DISTANCE MEASURING Max. Distance one prism 3.5KM (good weather) reflecting paper 1.2KMm (based on different condition) prismless 1000m display Max:999999.99M Min:1MM ...
Product Details
Highlight:
total station survey instrument
,survey total station
Colour:
Orange/yellow
Screen:
3.5" Colour Touch Screen With Pen
Battery:
Rechargeable Lithium Battery
Water/Dust Proof Class:
IP54
Accuracy:
1", 2" 5"
Prismless Range:
600m / 1000m
Compensator:
Dual Axises Compensator
Special Function:
One Touch Measurement
Product Description
GTS 340 1" / 2" / 5" serial prismless 600m/1000m total station for survey and construction
Specifications
| TECHNICAL DATA | |||
| GTS-342R10A | |||
| DISTANCE MEASURING | |||
| Max. Distance | one prism | 3.5KM | |
| (good weather) | reflecting paper | 1.2KMm (based on different condition) | |
| prismless | 1000m | ||
| display | Max:999999.99M Min:1MM | ||
| accuracy | 2+2PPM(with prism), ＜100M,3+2PPM,＞100M,5+5PPM(no prism, fine) | ||
| measuring time | fine: ＜1.5s, tracing: 0.1s,repeat:＜0.3s | ||
| wether constance change | automatic change after input constance | ||
| prism constance change | automatic change after input constance | ||
| ANGLE MEASURING | |||
| measurment way | absolute encode | ||
| Crosshair plate diam. | 79MM | ||
| Min. Reading | 1" optional | ||
| accuracy | 2" | ||
| VERTICAL COMPENSATOR | |||
| system | dual axis liquid-electric sensor | ||
| working range | +/-4' | ||
| precision | 1" | ||
| LEVEL SENSITIVITY | |||
| plate level | 30"/2mm | ||
| cicular level | 8'/2mm | ||
| TELESCOPE | |||
| image | erect | ||
| length of telescope | 152MM | ||
| Diam. of objective len's | telescope:45mm/distance measure:47mm | ||
| Magnificant | 30* | ||
| Field of view | 1° 30' | ||
| Min. focus | 1.3m | ||
| DISPLAY | |||
| type | dual face | ||
| POWER | |||
| source | chargeable lithium battery | ||
| voltage | DC7.4V | ||
| continues working time | 8 H | ||
| MEASURMENT AND WEIGHT | |||
| dim. | L216*W200*H350 MM | ||
| weight |
|
||

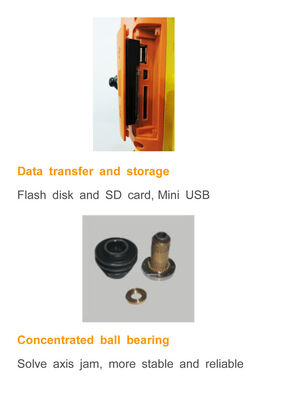

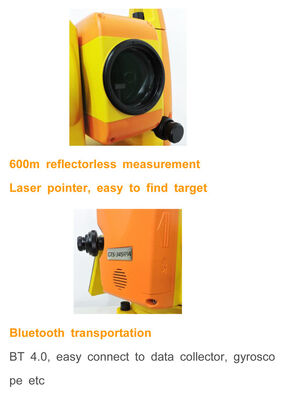

600m reflectorless measurement Laser pointer, Data transfer and storage Flash disk
easy to find target and SD card, Mini USB
Bluetooth transportation Concentrated ball bearing
BT 4.0, easy connect to data collector, etc Solve axis jam, more stable and reliable

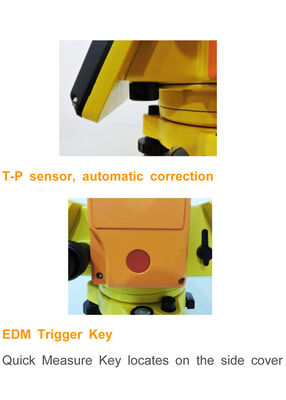

T-P sensor, automatic correction Totally new design for battery
EDM Trigger Key
Quick Measure Key locates on the side cover, which avoids any possible torque during the angle measurement
