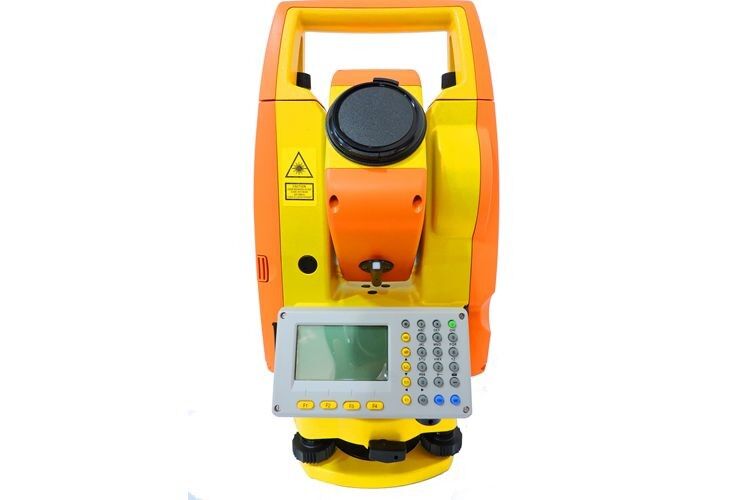

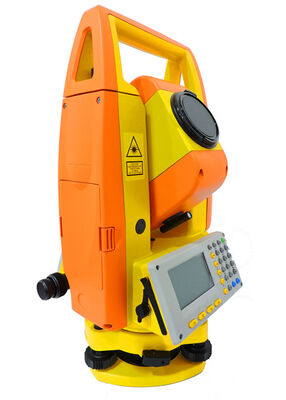

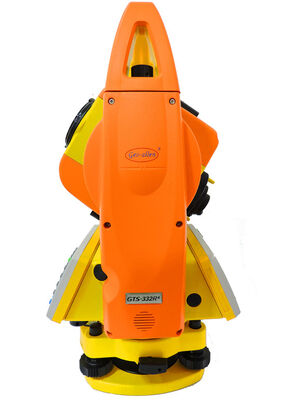

GTS 332R6 2" prismless 600m total station for survey and construction
Basic Properties
Place of Origin:
China
Brand Name:
GEOALLEN OR OEM BRAND
Model Number:
GTS 332R5 or GTS335R5
Trading Properties
Minimum Order Quantity:
1PC
Price:
USD
Payment Terms:
L/C, T/T
Supply Ability:
10000pcs per month
Product Summary
GTS332R6 2" prismless 600m total station for survey and construction TECHNIAL DATE GTS-332R6 DISTANCE MEASURING Max. Distance one prism 3.5KM (good weather) reflecting paper 1000m (based on different condition) prismless 600m (based on different condition) display Max:999999.99M Min:1MM accuracy 2...
Product Details
Highlight:
survey total station
,total station survey equipment
Color:
Yellow/orange
Accuracy:
2"
Prismless Range:
600m
Compensator:
Dual Axies Compensator
Water/Dust Proof Class:
IP54
Battery:
Rechargeable Lithium Battery
Product Description
GTS332R6 2" prismless 600m total station for survey and construction
TECHNIAL DATE
| GTS-332R6 | |||
| DISTANCE MEASURING | |||
| Max. Distance | one prism | 3.5KM | |
| (good weather) | reflecting paper | 1000m (based on different condition) | |
| prismless | 600m (based on different condition) | ||
| display | Max:999999.99M Min:1MM | ||
| accuracy | 2+2PPM(with prism), 5+2PPM(no prism, fine) | ||
| measuring time | fine: 1.2sec., tracing: 0.5sec. | ||
| wether constance change | automatic change after input constance | ||
| prism constance change | automatic change after input constance | ||
| ANGLE MEASURING | |||
| measurment way | absolute encoding | ||
| Crosshair plate diam. | 79MM | ||
| Min. Reading | 1"/5" optional | ||
| accuracy | 2" | ||
| VERTICAL COMPENSATOR | |||
| system | liquid-electric detection | ||
| working range | +/-6' | ||
| precision | 1" | ||
| LEVEL SENSITIVITY | |||
| plate level | 30"/2mm | ||
| cicular level | 8'/2mm | ||
| TELESCOPE | |||
| image | erect | ||
| length of telescope | 152MM | ||
| Diam. of objective len's | telescope:45mm/distance measure:47mm | ||
| Magnificant | 30* | ||
| Field of view | 1° 30' | ||
| Min. focus | 1.5m | ||
| LASER PLUMMET | |||
| Laser Power | 0.5mW | ||
| Laser class | ClassII | ||
| SOFTWARE AND MEMORY | |||
| on board software functions | REM,MLM,Area Calculation,Setting Z Coordinate of Occupied Point | ||
| Point to line measurement,Road,Stake Out,Resection | |||
| data collection,Angle measurement,Distance | |||
| Coordinate measurement,etc. | |||
| INTEMAL MEMORY | 2000KB (record 20000~25000 point) | ||
| DATA COMMUNICATION PORT | |||
| type | USB | ||
| Bluetooth | option available with additional fee | ||
| DISPLAY | |||
| type | dual face | ||
| POWER | |||
| source | chargeble lithium battery | ||
| voltage | DC7.4V | ||
| continues working time | 8H | ||
| MEASURMENT AND WEIGHT | |||
| dim. | 160*150*340MM | ||
| weight | 5.4KG | ||
| WATER AND DUST PROOF | IP54 | ||
