Quality Auto Level DSZ3-32A 32X Suvey And Construction Instrument factory

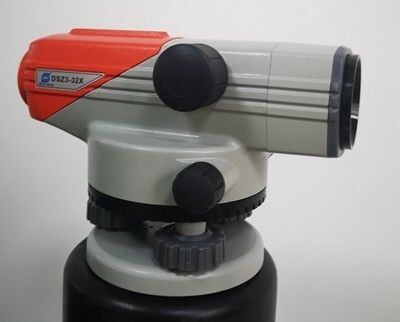

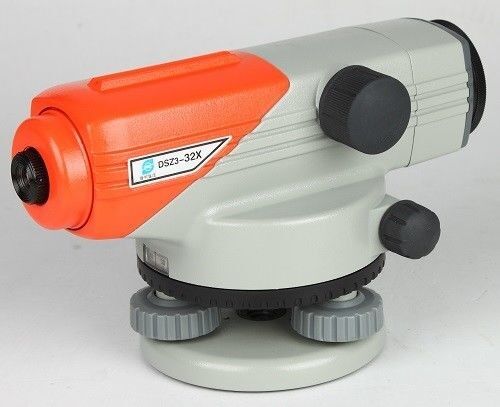

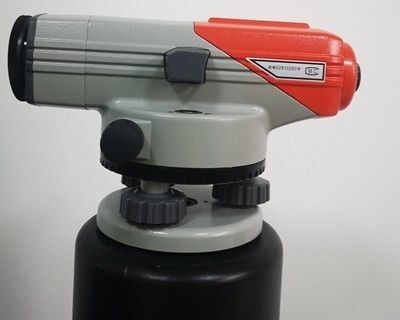

Auto Level DSZ3-32A 32X Suvey And Construction Instrument

Name: Auto Level DSZ3-32A 32X Suvey And Construction Instrument
Brand: GEO-ALLEN CO.,LTD.
SKU: DSZ3-32A
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: GEOALLEN

Model Number: DSZ3-32A

Trading Properties

Minimum Order Quantity: 4 PCS

Price: USD

Payment Terms: L/C, T/T

Supply Ability: 10000PCS

automatic levelling instrument

Auto Level DSZ3-32A 32X Suvey And Construction Instrument Specification Items Type DSZ3-32A DSZ3-28A DSZ3-24A Telescope Magnification 32X 28X 24X Image Erect image Objective aperture ≥42mm ≥36mm ≥32mm Min.focusing distance 0.3mm Stadia multiplication constant 100 mm Stadia additive constant 0 ...

Product Details

Color: Orange/Gray

Magnification: 32X

Image: Erect

Scale Graduation Range: 360d Or 400G

Product Description

Auto Level DSZ3-32A 32X Suvey And Construction Instrument

Specification

Items	Type	DSZ3-32A	DSZ3-28A	DSZ3-24A
Telescope	Magnification	32X	28X	24X
	Image	Erect image
	Objective aperture	≥42mm	≥36mm	≥32mm
	Min.focusing distance	0.3mm
	Stadia multiplication constant	100 mm
	Stadia additive constant	0
	Resolution	≤4"	≤5"	≤5.6"
Compensator	Working range	15'
	Compensating error	≤±0.3"/1'
	Setting accuracy	≤±0.35"
Scale	Scale graduation range	360°/400G
	Scale minimum value	1°/1gon
GO/RE observations error		±2mm/km
Sensitivity of circlar bubble		8'/2mm
Base screw		M16 or 5/8"X1/11" to be select
Environmental temperature		-25℃～±50℃
Carry case		Plastic case(aluminiium case for option with extra cost)
Parallel plate micrometer		Available for option
