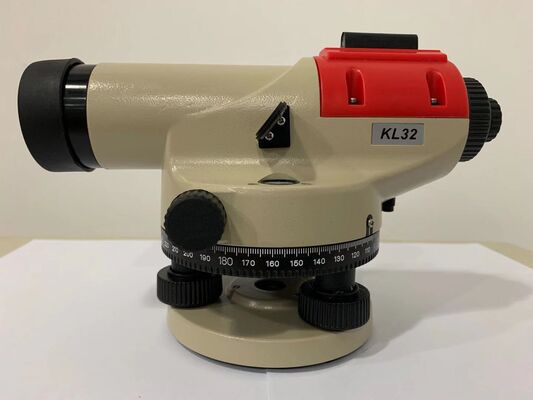

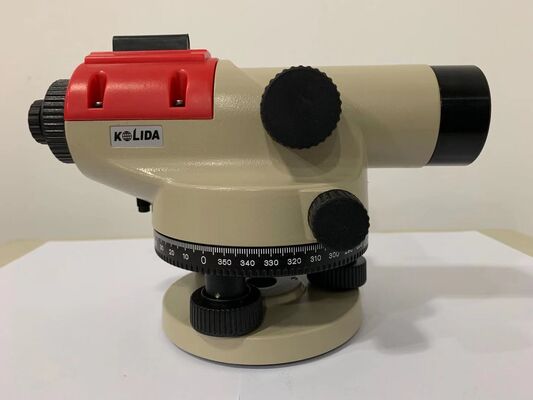

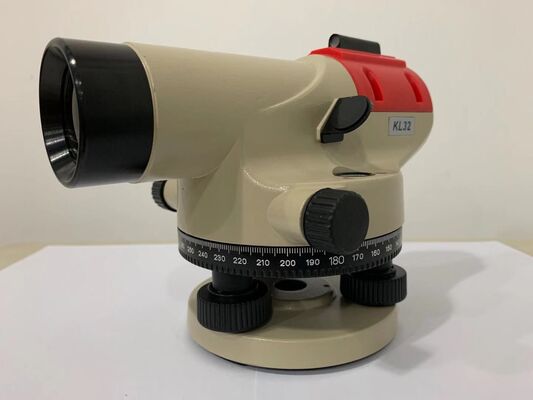

32X Auto Level KOLIDA BRAND KL-32G Magnetic Damping Optical Survey Instrument

Name: 32X Auto Level KOLIDA BRAND KL-32G Magnetic Damping Optical Survey Instrument
Brand: GEO-ALLEN CO.,LTD.
SKU: KL-32G
Availability: InStock

Basic Properties

Place of Origin: MADE IN CHINA

Brand Name: SOUTH

Model Number: KL-32G

Trading Properties

Minimum Order Quantity: 4 pcs

Supply Ability: 500 pcs per month

automatic levelling instrument

32X Auto Level KOLIDA BRAND KL-32G Magnetic Damping Optical Survey Instrument Main Features * Dependable and durable tools for leveling * 32X magnification, also available in 28x, 24x, 20x. * Excellent shockproof design * Magnetic damping compensator Specifications KL-20G KL-24G KL-28G KL-32G ...

Product Details

Color: Red / Gray

Magnification: X32

Brand: KOLIDA

Compensator: Magnetic Damping

Product Description

32X Auto Level KOLIDA BRAND KL-32G Magnetic Damping Optical Survey Instrument

Main Features

* Dependable and durable tools for leveling

* 32X magnification, also available in 28x, 24x, 20x.

* Excellent shockproof design

* Magnetic damping compensator

Specifications

	KL-20G	KL-24G	KL-28G	KL-32G
Magnification	20x	24x	28x	32x
Effective Objective Aperture	34mm	36mm	36mm	38mm
Image	Erect
Field of View	1°20'
Minimum Focus Distance	0.6m
Multiplication Constant	100
Additive Constant	0
Compensator Type	Magnetic Damping
Compensator Range	±15'
Compensator Accuracy	±0.6"	±0.6"	±0.6"	±0.6"
Standard 1km Deviation	2.5mm	2.0mm	1.5mm	1.0mm
Sensitivity	8'/2mm
Circle Graduation	360° or 400 gon
Protection Class	IP54
Working Temperature	- 20℃ ~ +50℃
Storage Temperature	- 40℃ ~ +70℃
Net Weight	1.8kg
