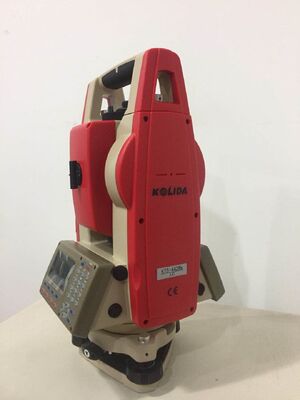

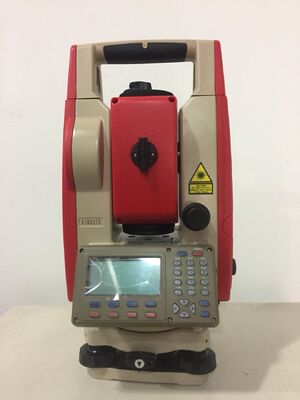

Reflectorless 600m Total Station Instrument Survey And Construction KOLIDA Brand KTS-442R6LC

Name: Reflectorless 600m Total Station Instrument Survey And Construction KOLIDA Brand KTS-442R6LC
Brand: GEO-ALLEN CO.,LTD.
SKU: KTS-442R6LC
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: KOLIDA

Model Number: KTS-442R6LC

Trading Properties

Minimum Order Quantity: 1 pc

Supply Ability: 50 pcs per month

total station survey instrument

KOLIDA brand reflectorless 600m Total Station Instrument Survey And Construction Specifications KTS-442R6LC Measuring Range 1P 5.0km 3P 8-10km Mini prism 800m Non prism 600m Digital Display Maximum:99999999.9999 Minimun:0.1mm Accuracy with prism 2mm+2ppm, without prism 3mm+2ppm Measuring time ...

Product Details

Highlight:

total station survey instrument

,

survey total station

Color: Red/gray

Accurancy: 2'

Prismless: 600

Method: Absolute

Dust And Water Protection: IP56

Compensator: Dual-axis Liquid Tilt Sensor

Product Description

KOLIDA brand reflectorless 600m Total Station Instrument Survey And Construction

Specifications

`KTS-442R6LC`
`Measuring Range`
`1P`	`5.0km`
`3P`	`8-10km`
`Mini prism`	`800m`
`Non prism`	`600m`
`Digital Display`	`Maximum:99999999.9999 Minimun:0.1mm`
`Accuracy`	`with prism 2mm+2ppm, without prism 3mm+2ppm`
`Measuring time`	`Tracking 0.1s, Fine 0.3s (optimal)`
`Atmospheric Correction`	`Automatic Correction by Inputting Parameter`
`Prism Constant`	`Automatic Correction by Inputting Parameter`
`Angle Measurement`
`Measurement Method`	`Absolute Encoding`
`Diameter of the Raster Disk`	`79mm`
`Mini Reading`	`1" / 5" Optional`
`Accuracy`	`2"`
`Detection Method`	`Horizontal: Dual`
`Telescope`
`Image`	`Erect`
`Length`	`154mm`
`Effective Aperture`	`45mm, (DTM: 50mm)`
`Magnification`	`30X`
`Field of View`	`1°30’`
`Resolving Power`	`3"`
`Minmum Focus`	`1m`
`Compensation`
`System`	`Dual axis liquid-electric`
`Working Range`	`±3'`
`Resolving Power`	`1"`
`Sensitivity of Vials`
`Plate Vial`	`30" /2mm`
`Circular Vial`	`8‘ /2mm`
`Optical Plumment`
`Image`	`Erect`
`Magnification`	`3X`
`Focusing Range`	`0.5m - ∞`
`Field of View`	`5°`
`Data Storage & Communication`
`Internal Memory`	`2M/24000 points`
`External Memory`	`SD-Card (up to 32G)`
`Communication Port`	`RS-232, mini-USB`
`Display`
`Type`	`Dual sides, 6 lines`
`Battery`
`Power Supply`	`Rechargeable Ni-H battery(2700 mAH)`
`Voltage`	`6 V DC`
`Operation Time`	`10 hours`
`Dimension & Weight`
`Dimension`	`160mm X 150mm X 330mm`
`Weight`	`5.8kg`
`Environmental Specification`
Dust/water(IEC60529)	`IP56`
`Working Temerature`	`-20℃-50℃`
`Humidity`	`95%,non-condensing`
