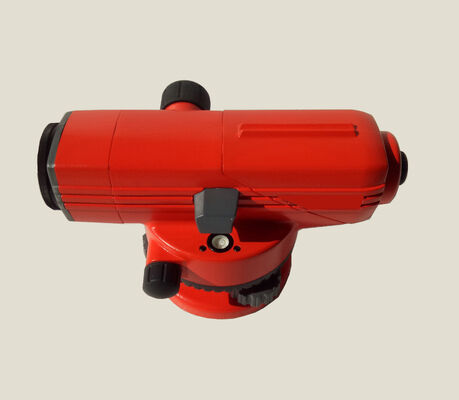

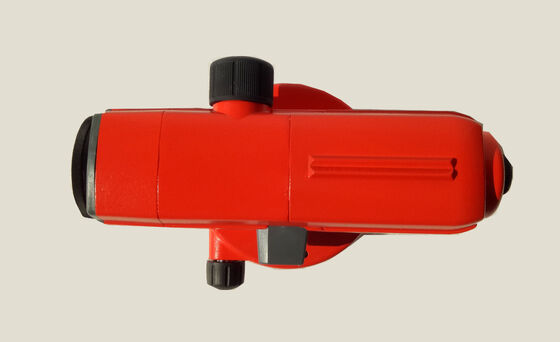

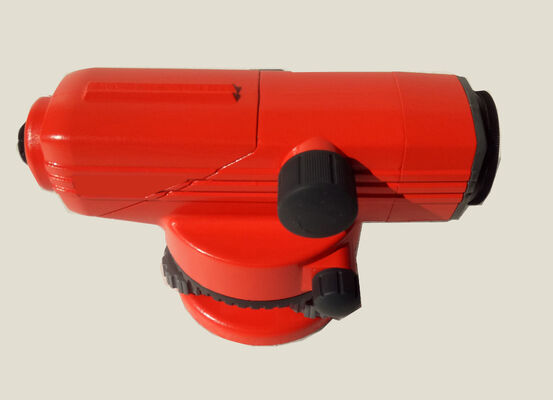

AL serial Auto Level DSZ3-D with 24X 30X / 32X Suvey And Construction Instrument

Basic Properties
Place of Origin: China
Brand Name: GEOALLEN
Model Number: AL serial
Trading Properties
Minimum Order Quantity: 4 PCS
Price: USD
Payment Terms: L/C, T/T
Supply Ability: 10000PCS
Tags

auto level instrument

automatic levelling instrument

auto level machine
Product Summary
AL serial Auto Level DSZ- D with 24X/30X/32X Specification:　 Parts Type DSZ3-32D DSZ3-30D DSZ3-24D Telescope Magnification 32X 30X 24X Image Erect image Objective aperture ≥42mm ≥36mm ≥32mm Min.focusing distance 0.3mm Stadia multiplication constant 100 Stadia additive constant 0 Resolution ≤4" ≤5" ...

Product Details

Highlight:

automatic levelling instrument

,

auto level instrument
Color: Orange
Magnification: 24X30X/32X
Image: Erect
Degree: 360/400 Degree
Product Description

 AL serial Auto Level DSZ- D with  24X/30X/32X

Specification:　



Parts Type DSZ3-32D DSZ3-30D DSZ3-24D
Telescope Magnification 32X 30X 24X
Image Erect image
Objective aperture ≥42mm ≥36mm ≥32mm
Min.focusing distance 0.3mm
Stadia multiplication constant 100
Stadia additive constant 0
Resolution ≤4" ≤5" ≤5.6"
Compensator Working range 15'
Compensating error ≤±0.3"/1'
Setting accuracy ≤±0.5"
Scale Scale graduation range 360°/400G
Scale minimum value 1°/1gon
Sensitivity of circlar bubble 8'/2mm
Base screw M16 or 5/8"X1/11" to be select
Environmental temperature -25℃～±50℃
Carry case Plastic case(aluminiium case for option with extra cost)
Parallel plate micrometer Available for option
