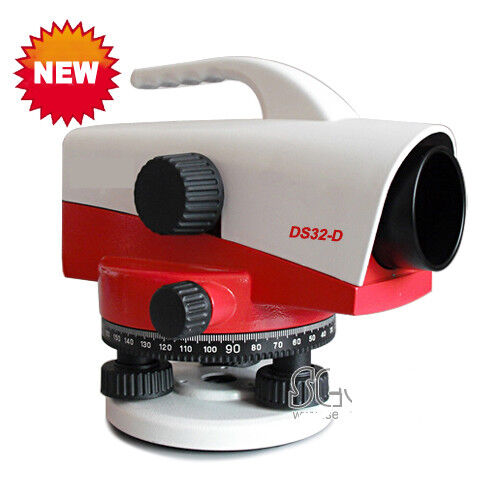

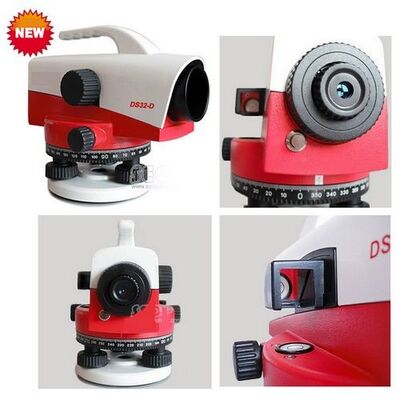

360D / 400G degree Auto Level Suvey Instrument with Unique handle For Construction

Basic Properties
Place of Origin: china
Brand Name: GEOALLEN
Model Number: DS32-D Auto level
Trading Properties
Minimum Order Quantity: 4 PCS
Price: USD
Payment Terms: L/C, T/T
Supply Ability: 10000PCS
Tags

auto level instrument

automatic levelling instrument

auto level machine
Product Summary
DS32-D Auto level Specification: Technical Parameters DS32-D Standard Deviation for 1km Double-run Leveling 1.0mm Telescope Magnification 32× Telescope Image Erect Effective Aperture Size of Object Lens 40mm Field of View 1°20 Shortest Sighting Distance 0.65m Stadia Multiplication 100 Addition ...

Product Details

Highlight:

automatic levelling instrument

,

auto level instrument
Color: Red
Magnification: 32X
Image: Erect
Degree: 360D/400G
Leveling Accuracy: ±0.3"
Product Description

 DS32-D Auto level

Specification:



Technical Parameters DS32-D
Standard Deviation for 1km Double-run Leveling 1.0mm
Telescope Magnification 32×
Telescope Image Erect
Effective Aperture Size of Object Lens 40mm
Field of View 1°20
Shortest Sighting Distance 0.65m
Stadia Multiplication 100
Addition Constants 0
Compensator Type X wire-hung and air-damping
Compensator Working range ±15'
Leveling Accuracy ±0.3"
Accuracy of Circular Level 8/2'mm
Horizontal Circle 360°or 400Gon optional
Net. Weight 1.6kg
Standard Accessories Adjusting Pin, Hex key, Desiccating Agent.
Plastic Carry Case, Plumb Bob, User Manual
Packing Details 4sets per Carton:12kgs per Carton
Carton Dimentions:47cmX36cmX47cm
