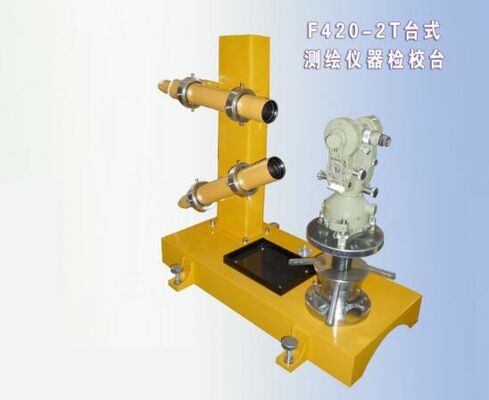

Small Auto Level Suvey And Construction Instrument / 2pcs Tube Collimator for Autolevel and Theodolite

Name: Small Auto Level Suvey And Construction Instrument / 2pcs Tube Collimator for Autolevel and Theodolite
Brand: GEO-ALLEN CO.,LTD.
SKU: F420-2T
Availability: InStock

Basic Properties

Place of Origin: CHINA

Brand Name: GEO-ALLEN/ OEM

Model Number: F420-2T

Trading Properties

Minimum Order Quantity: 1 SET

Price: USD

Payment Terms: T/T, Western Union

Supply Ability: 100 PCS

automatic levelling instrument

F420-2T 2pcs Tube Collimator for Autolevel and Theodolite Specifications 1 Collimator quantity 2pcs 2 Focusing range 420mm 3 Accuracy 20” 4 Internal quantity of reticule(far point) 1pc 5 collimator horizontal axis adjustable range ≥ 30’ 6 collimater vertical axis adjustable range ≥ 30’ 7 Max. ...

Product Details

Highlight:

automatic levelling instrument

,

auto level instrument

Colimator Tubes: 2 Pcs

Focal Length Of The Collimators: 300 Mm

Working Range: 2m To ∝

Elevating Range: 0 - 60 Mm

Product Description

F420-2T 2pcs Tube Collimator for Autolevel and Theodolite

Specifications

1	Collimator quantity	2pcs
2	Focusing range	420mm
3	Accuracy	20”
4	Internal quantity of reticule(far point)	1pc
5	collimator horizontal axis adjustable range	≥ 30’
6	collimater vertical axis adjustable range	≥ 30’
7	Max. Adjusting range up-down for the base of the collimator(with screws and adjusting tool)	≥ 30 cm
8	Max capable weight for the platform	≥ 40 kg
9	accurancy of bubble	8’ / 2mm
10	working voltage	6V
