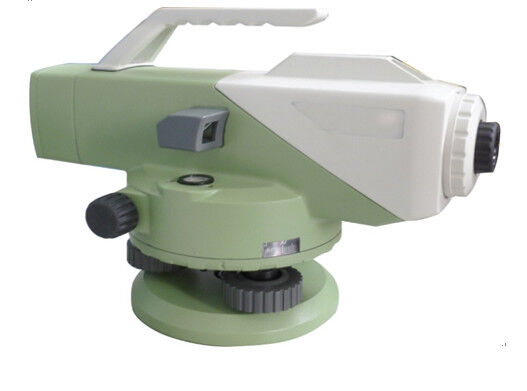

Green Auto Level Suvey And Construction Instrument With Magnetic Damping

Basic Properties
Place of Origin: china
Brand Name: GEOALLEN
Model Number: DS32M
Trading Properties
Minimum Order Quantity: 4 PCS
Price: USD
Payment Terms: L/C, T/T
Supply Ability: 10000PCS
Product Summary
DS32M Auto Level with magnetic damping for construction Survey Instrument Specification:  Type DS32M Telescope Erect Zoom out 32X Objective Lens Aperture 45mm Field of view 1°20' The mix Stadia 0.4m Stadia Ratio 100 Stadia Constant 0 Work Range ±12' Accuracy ±0.3' Blister Precision 8'/2mm Diagraph ...

Product Details

Highlight:

automatic levelling instrument

,

auto level instrument

Color: Green
Magnification: 32X
Image: Erect
Degree: 360/400 Degree
Product Description

 DS32M Auto Level with   magnetic damping for construction Survey Instrument

Specification:

Type DS32M
Telescope Erect
Zoom out 32X
Objective Lens Aperture 45mm
Field of view 1°20'
The mix Stadia 0.4m
Stadia Ratio 100
Stadia Constant 0
Work Range ±12'
Accuracy ±0.3''
Blister Precision 8'/2mm
Diagraph on scale 1° or 1gon
Standard error per male 0.5mm(+MD1)
Weight 2.7kg
