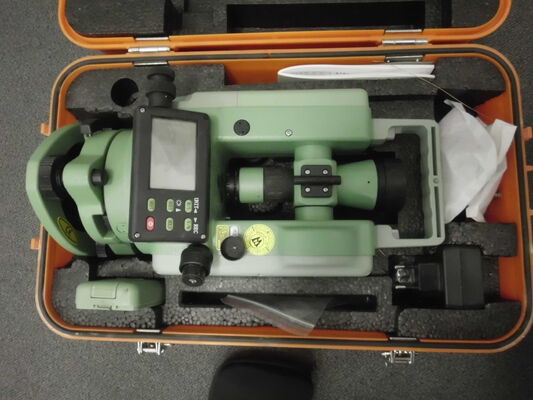

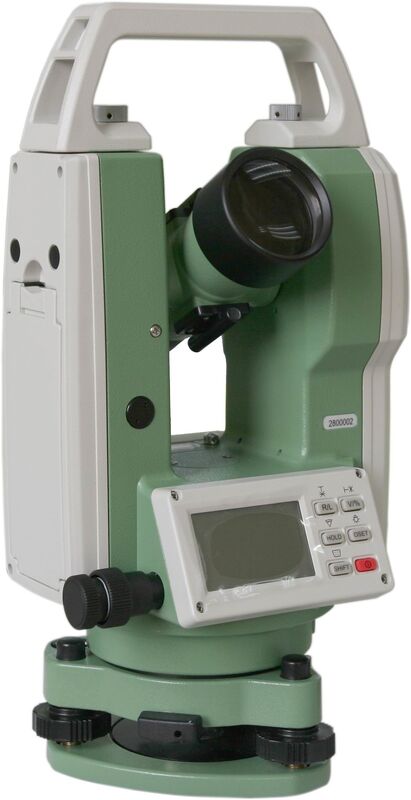

5" Accuracy Theodolite Digital And Optical Survey And Construction Instrument With LCD Display

Basic Properties
Place of Origin: MADE IN CHINA
Brand Name: GEOALLEN BRAND OR NO BRAND
Certification: CE CERTIFICATE
Model Number: DT405/ DT405L
Trading Properties
Minimum Order Quantity: 1pc
Price: USD
Payment Terms: L/C, T/T
Supply Ability: 300pcs per year
Product Summary
DT405/DT405L 5" Accuracy Digital Theodolite for constrctionSpecifications DT405DT405LTelescopeImageErectObjective apertureφ45mmMagnification30xField of view1°30′Minimum focus1.0mAngle measurementReading systemabsolute encoderMinimum reading1"/5"/10" (0.2mgon/1mgon/2mgon)Accurancy5"Compensation range...

Product Details

Highlight:

total station theodolite

,

theodolite surveying instrument

Accuracy: 5"
Color: Green
Field Of View: 1°30′
Minimum Focus: 1.0m
Product Description

DT405/DT405L 5" Accuracy Digital Theodolite for constrction

Specifications


  DT405DT405L
Telescope
ImageErect
Objective apertureφ45mm
Magnification30x
Field of view1°30′
Minimum focus1.0m
Angle measurement
Reading systemabsolute encoder
Minimum reading1"/5"/10" (0.2mgon/1mgon/2mgon)
Accurancy5"
Compensation range±3”
Compensation setting accurancy1
Display
Display panelLCD on double sides
Illumination
ReticleYes
LCD display back lightYes
Level sensitivity
Plate level30”/2mm
Circular level8' /2mm
Power supply6V Ni-mh rechargeable battery for 4pcs AA battery
Operation time24 hrs with rechargeable battery
Laser plummet(standard)
Accuracy±1.00mm/1.5m
Laser classClass 2 /IEC60825-1
Laser wave635nm
Optical plummet (Factory optical)
Accuracy±0.8mm/1.5m
ImageErect
Magnification3x
Field of view
Focus range0.5m to
Other
Serial interfaceRS-232C
Dimension53*30*30
Weight10kg
Opertaion temperature-20℃~+50℃
Water and dust productionIP55
