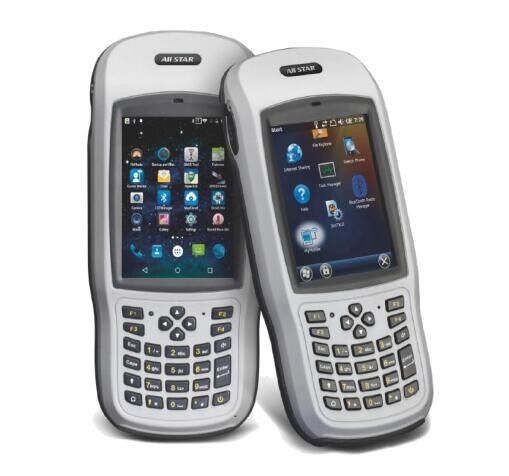

WIFI GNSS High Precision Controller S17M for G9 & G10 Receiver
Basic Properties
Place of Origin:
Made in china
Brand Name:
No brand or OEM
Certification:
No Certificate
Model Number:
S17M
Trading Properties
Minimum Order Quantity:
1 Piece
Price:
USD
Payment Terms:
L/C, T/T
Supply Ability:
1000 Pieces per year
Product Summary
Controller S17M for G9 & G10 GNSS Receiver Specifications: CPU 512M ROM 4GB Operate system Windows Mobile 6.X Keyboard 27 key number+control key Screen resolution 480 x 640 Camera 5M pixel Size 200mm x 96mm x 32mm Weight 515g (including battery) GNSS performance GNSS GPSL1+BDB1/GPS L 1+GLONASS G1 ...
Product Details
Highlight:
gnss rtk receiver
,gnss gps receiver
Operate System:
Windows Mobile 6. X
Keyboard:
27 Key Number+control Key
Software:
SurvCE, FieldGenius
Power:
Li-battery, 6500mAh, 3.7V
Size:
200mm X 96mm X 32mm
Weight:
515g (Wiith Battery)
Product Description
Controller S17M for G9 & G10 GNSS Receiver
Specifications:
| CPU | 512M |
| ROM | 4GB |
| Operate system | Windows Mobile 6.X |
| Keyboard | 27 key number+control key |
| Screen resolution | 480 x 640 |
| Camera | 5M pixel |
| Size | 200mm x 96mm x 32mm |
| Weight | 515g (including battery) |
| GNSS performance | |
| GNSS | GPSL1+BDB1/GPS L 1+GLONASS G1 |
| Channel | 72 |
| Raw Data | - |
| NMEA-0183 | Support |
| Rove/Base | - |
| Positiong accuracy | |
| Single | 2.5m |
| SBAS | 2m |
| RTK | - |
| Communication and data storage | |
| WIFI | Support |
| USB interface | Type B USB |
| Interface | DB9 standard series port |
| Storage extension | TF card, upto 32GB |
| Long distance bluetooth | Optional |
| Standard bluetooth | V2.1 |
| NFC | - |
| Voice communication | nonsupport |
| GSM/3G (WCDMA) | 3G (WCDMA) |
| Power | |
| Power input | DC5V, 1A |
| Removable Li-baterry | 6,500mAh, 3. 7V |
| Environment | |
| Work environment | ‐20℃ ~ +60℃ |
| Storage temprature | ‐30℃ ~ +70℃ |
| Dustproof waterproof grade | IP65 |
| Anti-dropping | 1.2m free dropping |
| Accessory | |
| Standard accessories | Power adaptor, USB cable, battery, series port |
| cable,stylus, | |
| hand strap, screen film,Operational guidelines | |
| Optional accessories | Bracket, external antenna, external antenna patch cord |
| Software support | |
| Software | SurvCE, FieldGenius |
