P9 Data Collector For GNSS Reciver

China P9 Data  Collector For GNSS Reciver supplier
P9 Data  Collector For GNSS Reciver supplier P9 Data  Collector For GNSS Reciver supplier

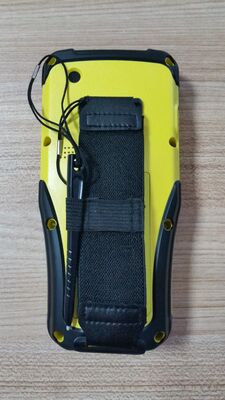

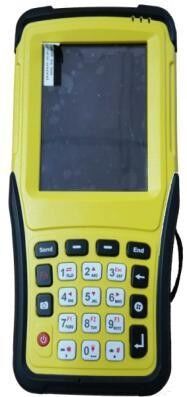

Large Image :  P9 Data Collector For GNSS Reciver

Product Details:

Place of Origin: China
Brand Name: No Brand
Certification: No Certificate
Model Number: P9

Payment & Shipping Terms:

Minimum Order Quantity: 5PCS
Price: USD
Packaging Details: Package in box
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
Operation System: Windows Mobile6.5 Screen Size: 3.7inch
Wifi: Wlan 802.11b/g Battery: 25.16w Big Capacity Battery

P9 Data Collector For GNSS Reciver



Specifications



                                               P9 Data  Collector For GNSS Reciver

Model P9
Physical parameter
Operation system Windows Mobile6.5
Processor TI Sitara™ AM335x 1GHz
RAM 512MB
ROM 4Gboard flash memory(32Goption)
Screen 3.7inch Blanview TFT transflective screen,480×640VGAresolution ratio
Battery 25.16W big capacity battery,single battery endurance>10hours
Communication Bluetooth,Version2.1+EDR,USB OTG(directly conenct Uflash disk)
Camera

5millionpixel automati focusing

VGA resolution ratio video recording

Communication

module

3.5G WCDMA 900 / 2100MHz
WIFI WLAN 802.11b/g
Press button All digital alphabetmulti-functionkepboard,F1-F4definable shortcusts, lateral definable collect keys
Size Length192.0mm Width93.5mm thickness43.0mm
Weight 925g(with battery)
Environment
Protection level IP67
Temperature Opration temperature-20℃-+60℃,Storage temperature-30℃-+70℃
Humidity 5%-95%Rhnon-condensing
Drop 1.2meters fell on the cement plywood ground without damage
Performance



Satellite

GPS L1 GLONASS L1

BeiDou 2rd generation B1

Channel 72
Positioning accuracy Horizontal 2 m CEP
Updating speed 1Hz (highest10Hz)
Data output NMEA-0183
Real-time correction RTCM 2.x,3.x
