MDT 2" / 5" / 20" Theodolite Digital And Optical Survey And Construction Instrument CS Series

Certification
Good quality Theodolite Digital And Optical Survey And Construction Instrument for sales
Good quality Theodolite Digital And Optical Survey And Construction Instrument for sales
I'm Online Chat Now

MDT 2" / 5" / 20" Theodolite Digital And Optical Survey And Construction Instrument CS Series

China MDT 2" / 5" / 20" Theodolite Digital And Optical Survey And Construction Instrument CS Series supplier
MDT 2" / 5" / 20" Theodolite Digital And Optical Survey And Construction Instrument CS Series supplier MDT 2" / 5" / 20" Theodolite Digital And Optical Survey And Construction Instrument CS Series supplier

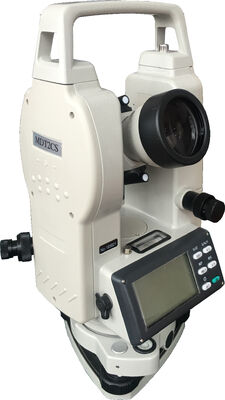

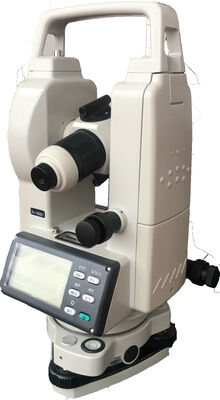

Large Image :  MDT 2" / 5" / 20" Theodolite Digital And Optical Survey And Construction Instrument CS Series

Product Details:

Place of Origin: MADE IN CHINA
Brand Name: GEOALLEN OR NO BRAND
Certification: NO CERTIFICATE
Model Number: MDT2"/5"/20"CSL

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD
Packaging Details: PACKAGE IN CARTON
Delivery Time: 15 Working days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
ACCURANCY: 2"/5"/20" COLOR: GREY
CODE: Absolutely Code Display: Led Display

MDT 2"/5"/20" CS Series Theodolite

Specifications



Model MDT2CS  Series
Telescope
Length of Telesoope 156mm
Image Erect
Clear objective aperture 45mm
Magnification 30X
Resolving Power 3.5''
Angle of field of view 1°30'
Shortest focusing distance 1.3m
Stadia multiplying constant 100
Stadia additive constant 0
Angle Measurement
Method Raster Incremental/Absolutely code
Detecting Horizontal:Double
  Vertical:Single
Minimum Reading 1"/5"
Accuracy 2"
Display Panel Double Face
Compensator
Tilt Sensor Yes
Range of compensator ±3'
Output Interface
Communication Standard RS232C
EDM Interface Yes
Date Output Interface Yes
Plummet
Accuracy of plummet ±1mm
Base
Base Model Separated
Power
Battery Chargeable battery / four AA alkaline
Working Time About 20 Hours
Level Sensitivity
Sensitivity of Long Vial 30"/2mm
Sensitivity of Bubble 8"/2mm
Other
Temperature -20°C~+50°C
Net Weight 4.8kg
