| Place of Origin: | MADE IN CHINA |
|---|---|
| Brand Name: | GEOALLEN OR NO BRAND |
| Certification: | NO CERTIFICATE |
| Model Number: | MDT2″/5″/20″CSL |
| ACCURANCY: | 2″/5″/20″ | COLOR: | GREY |
|---|---|---|---|
| CODE: | Absolutely Code | Display: | Led Display |

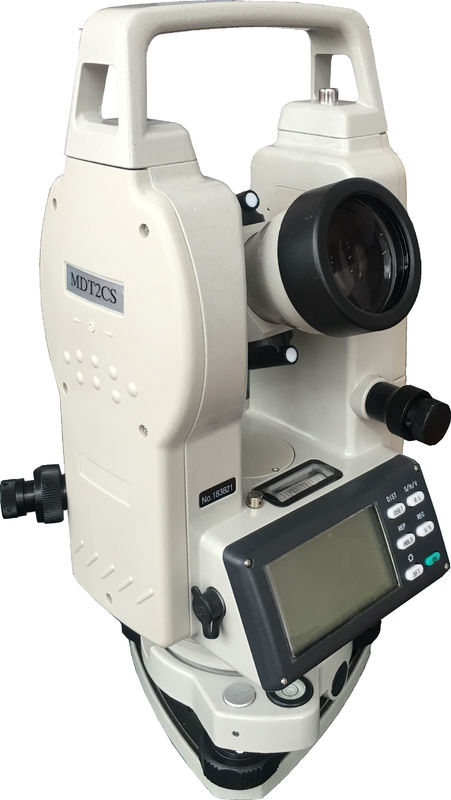

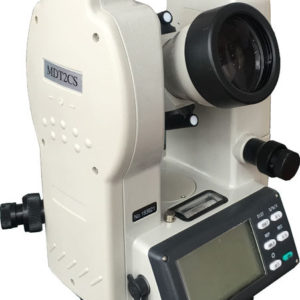

MDT 2″/5″/20″ CS Series Theodolite
Specifications
| Model | MDT2CS Series |
| Telescope | |
| Length of Telesoope | 156mm |
| Image | Erect |
| Clear objective aperture | 45mm |
| Magnification | 30X |
| Resolving Power | 3.5” |
| Angle of field of view | 1°30′ |
| Shortest focusing distance | 1.3m |
| Stadia multiplying constant | 100 |
| Stadia additive constant | 0 |
| Angle Measurement | |
| Method | Raster Incremental/Absolutely code |
| Detecting | Horizontal:Double |
| Vertical:Single | |
| Minimum Reading | 1″/5″ |
| Accuracy | 2″ |
| Display Panel | Double Face |
| Compensator | |
| Tilt Sensor | Yes |
| Range of compensator | ±3′ |
| Output Interface | |
| Communication Standard | RS232C |
| EDM Interface | Yes |
| Date Output Interface | Yes |
| Plummet | |
| Accuracy of plummet | ±1mm |
| Base | |
| Base Model | Separated |
| Power | |
| Battery | Chargeable battery / four AA alkaline |
| Working Time | About 20 Hours |
| Level Sensitivity | |
| Sensitivity of Long Vial | 30″/2mm |
| Sensitivity of Bubble | 8″/2mm |
| Other | |
| Temperature | -20°C～+50°C |
| Net Weight | 4.8kg |
