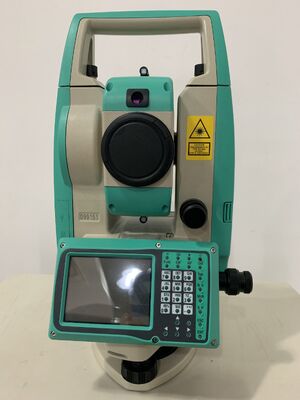

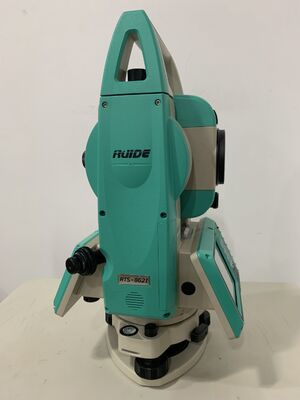

RUIDE RTS-862I with Camera Non-Prism 800m Total station for Surveying Instrument

China RUIDE  RTS-862I with Camera Non-Prism 800m  Total station for Surveying Instrument supplier
RUIDE  RTS-862I with Camera Non-Prism 800m  Total station for Surveying Instrument supplier RUIDE  RTS-862I with Camera Non-Prism 800m  Total station for Surveying Instrument supplier RUIDE  RTS-862I with Camera Non-Prism 800m  Total station for Surveying Instrument supplier

Large Image :  RUIDE RTS-862I with Camera Non-Prism 800m Total station for Surveying Instrument

Product Details:

Place of Origin: China
Brand Name: RUIDE
Model Number: RTS-862I

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD
Packaging Details: plastic case + carton box
Delivery Time: two weeks after confirmation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Color: Green/Gray Accuracy: 2"
Prismless Range: 800m Compensator: Dual Axies Compensator
Water/dust Proof Class: IP66 Battery: Rechargeable Lithium Battery

RUIDE RTS-862I with Camera Non-Prism 800m Total station for Surveying Instrument



Features

0.8 mega pixel camera on top of the EDM on RTS-862I,capturing the color images of the points you measure. Images can be saved and post processed with relevent point information.

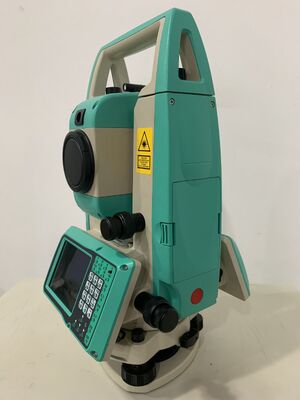

The Q-MEAS button, a red button on the side cover,triggers a distance measure fast without moving away your eye from the telecope. It also generates zero deviation on the horizontal axis comparing with the operation on the screen or keyboard. You can even press it wearing a glove.



3.7" super large touch and color screen with alphanumeric keyboard. Backlight of the screen and keyboard can be adjusted.



Specifications

MODEL RTS-862I
TELESCOPE
Length 152mm
Objective Lens Diameter Telescope:45mm Distance meter:47mm
Magnification 30X
Image Erect
Field of View 1°30″
Resolving Power 3″
Mini.Focus 1.0m
DISTANCE MEASUREMENT
Single Prism 4000m
Non-Prism 800m
Accuracy - Prism Mode ±(2mm+2ppm×D)m.s.e.
-Non-Prism Mode ±(3mm+2ppm×D)m.s.e.
Measuring Time Fine:0.3s,Normal:0.2s ,Tracking:0.1s
Meeteorologic Correction ATMOSense(Auto Sensing)
Prism Constant Manual Input
ANGLE MEASUREMENT
Method Absolute Encoding
Detecting System H:2 sides, V: 2 sides
Miin.Reading 1″
Accuracy 2″
Diameter of Circle 79mm
Vertical Angle 0° Zenith 0°/Horizontal:0°
Unit 360°/400gon/6400mil
DISPLAY
Display Unit 3.7” Color & Touch Screen
No.of Unit 2 sides
Keyboard Alphanumeric Key
TILT CORRECTION
Tilt Sensor Dual Axis
Method Liquid Electric
Range ±6′
Setting Unit 1″
LEVEL SENSITIVITY
Plate Level 30″/2mm
Circular Level 8′/2mm
OPTICAL PLUMMET(OPTIONAL:INTERNAL LASER PLUMMET)
Image Erect
Magnification 3X
Focusing Range 0.3m~∞
Field of View
DATA STORAGE & INTERFACE
Internal Memory 160,000 points
Data Inerface RS 232/SD-card/USB Pen Drive/Mini-USB
Wireless Communication Bluetooth 3.0
GENERAL
Q-MEAS Button Yes
Camera Yes. 0.8 mpx,3X
Weight&Dimension 5.4kg,340mm(H)×160mm(W)×150mm(L)
Working Temperature –20°C~+50°C
Battery Type Rechargeable Li-on Battery 3900mAh
Battery Voltage DC7.4V
Working Time 12h



RUIDE  RTS-862I with Camera Non-Prism 800m  Total station for Surveying Instrument
